STR5812 is an ultra-low-cost motion sensing sensor chip that operates in the 5.725-5.85GHz frequency band. It senses object movement based on the Doppler effect. It has sensitive reception, low power consumption, strong common mode suppression, and a wide operating temperature range. Features.

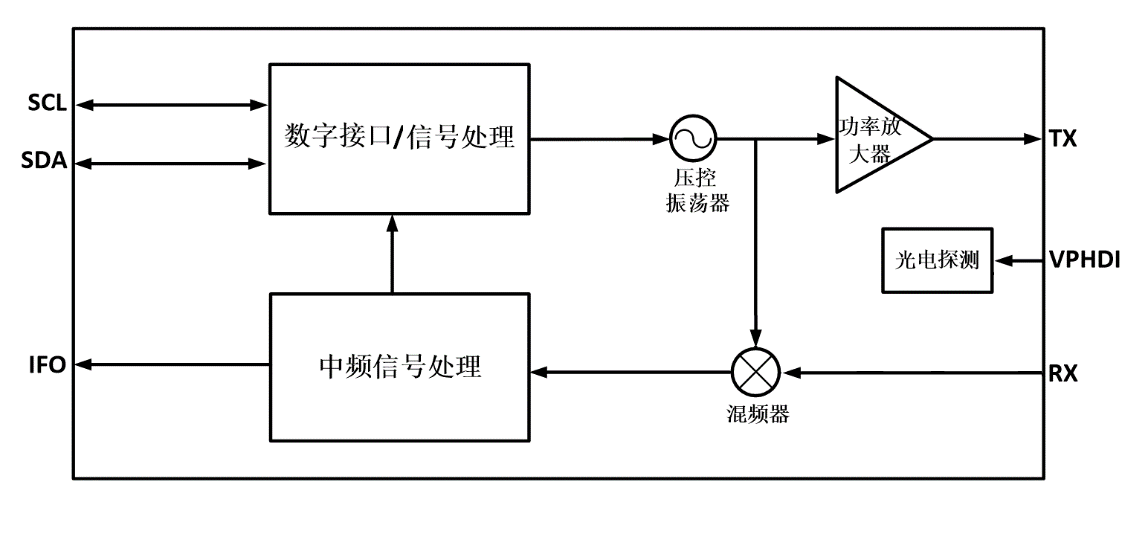

The STR5812 chip has a built-in low-noise voltage-controlled oscillator (VCO), which can adjust the working frequency band and avoid co-frequency interference.
The STR5812 registers are configured through the 2-wire I2C interface.
5.8GHz typical operating frequency
Transmission power: -10dBm~0dBm
Support photosensitive operation
Working temperature range from -40 ℃ to+105 ℃
Minimum working current 10mA
Motion perception
Inductive lighting (smart homes, corridors, and bathroom night lights)
Smart building (automatic door, contactless opening of kitchen range hood)
Energy saving applications (garage, park lighting control)
Senseless monitoring (anti theft in laboratories and computer rooms)
