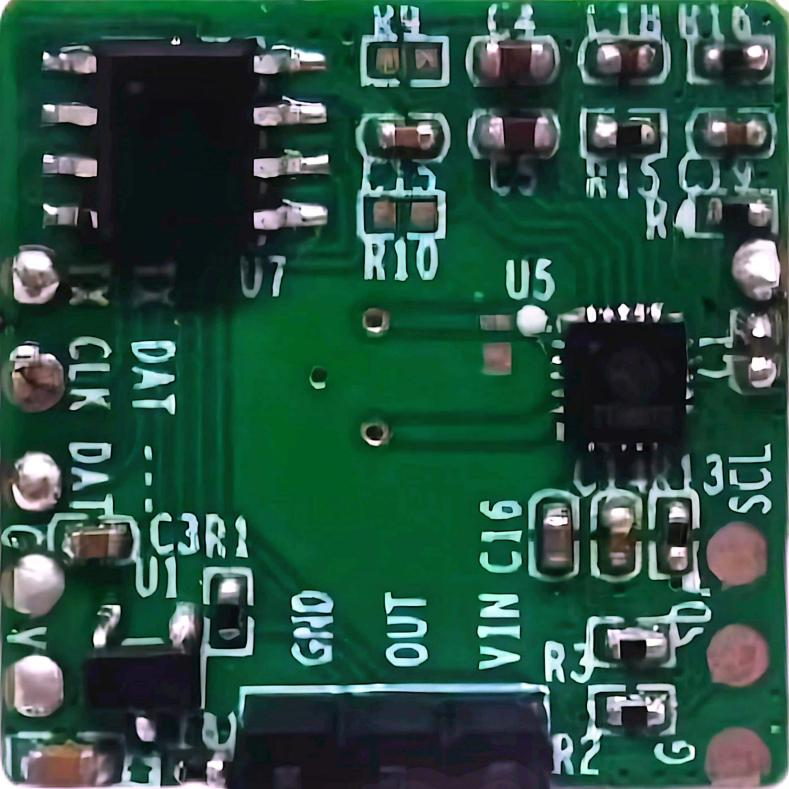

5.8G radar sensor module, overall power consumption< 15mA, with a size of 20mm * 20mm, the main chip integrates 5.8G RF transceiver circuit, intermediate frequency amplifier circuit, and signal processing circuit, with high integration and good production consistency. The peripheral is equipped with a low-cost LDO, a miniaturized planar antenna, and a low-cost MCU. The delay time is adjustable, with strong anti-interference ability and high cost-effectiveness.
| Product parameters | |
| Module size | 20mm*20mm |
| Working voltage | DC4-12V |
| Working current | 12~15mA |
| Output voltage | 3.3V |
| Output signal | CMOS high and low levels |
| Interface | I²C |
| Sense distance | Wall mounted 8-10 meters (radial) Hanging height of 3 meters, induction radius of 3-5 meters |
| Application Scenario |
| Motion perception |
| Inductive lighting (smart homes, corridors, and bathroom night lights) |
| Smart building (automatic door, contactless opening of kitchen range hood) |
| Energy saving applications (garage, park lighting control) |
| Senseless monitoring (anti theft in laboratories and computer rooms) |
